Oedometer test



An oedometer test is a laboratory test that measures a soil's consolidation properties. Oedometer tests are performed by applying different loads to a soil sample and measuring the deformation response. The results from these tests are used to predict how a soil in the field will deform in response to a change in effective stress.

Our soil laboratory software “CiviLab” facilitates the processing of The Oedometer test and reduces the time required, also CiviLab provides high quality reports and archives them properly

In the Oedometer test you can use CiviLab to:

  • Plot the diagram;
  • Compute the compression index Cc;
  • Compute the recompression index Cr;
  • Compute the preconsolidation pressure σ'p;
User manual: Oedometer test

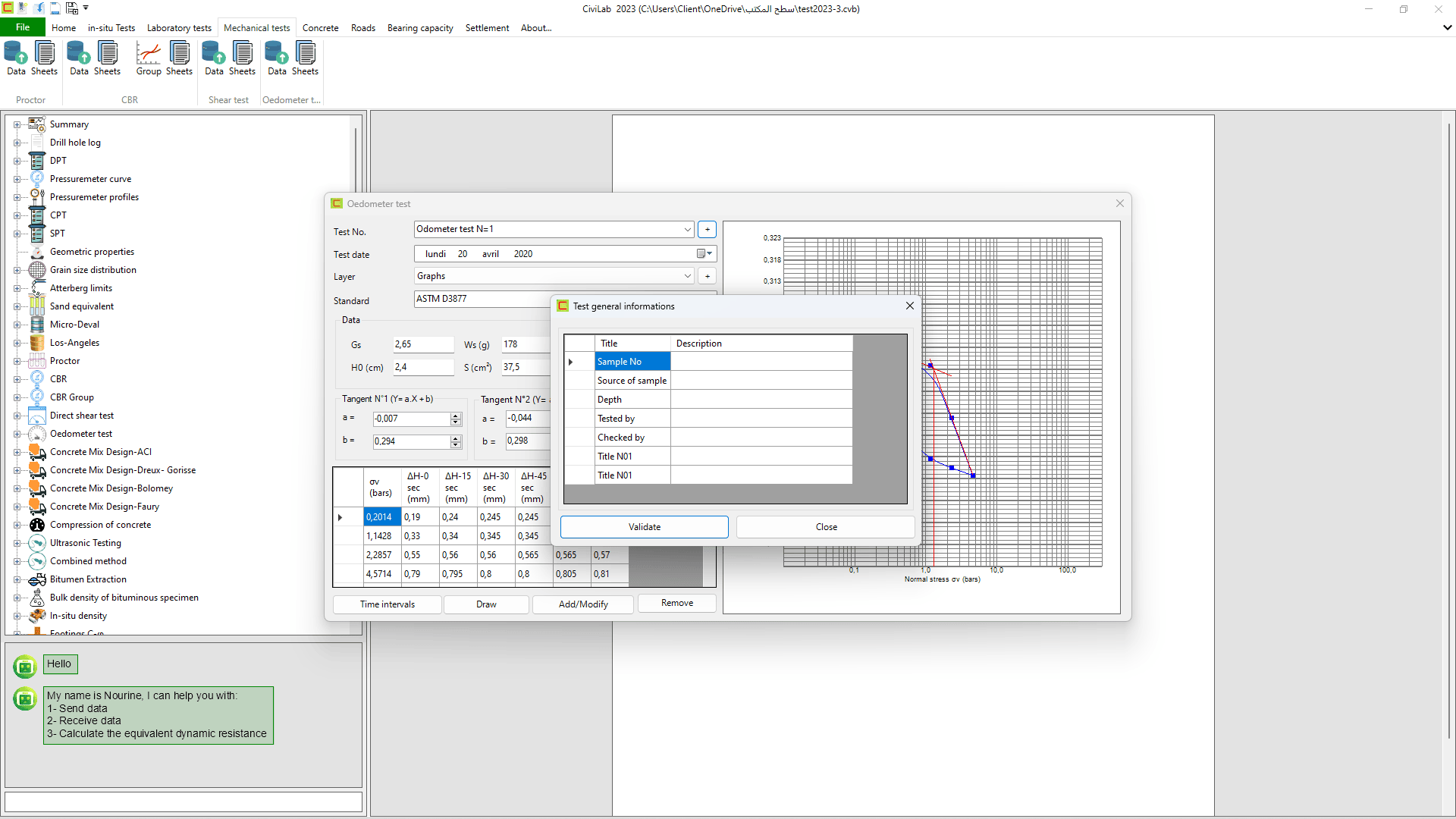

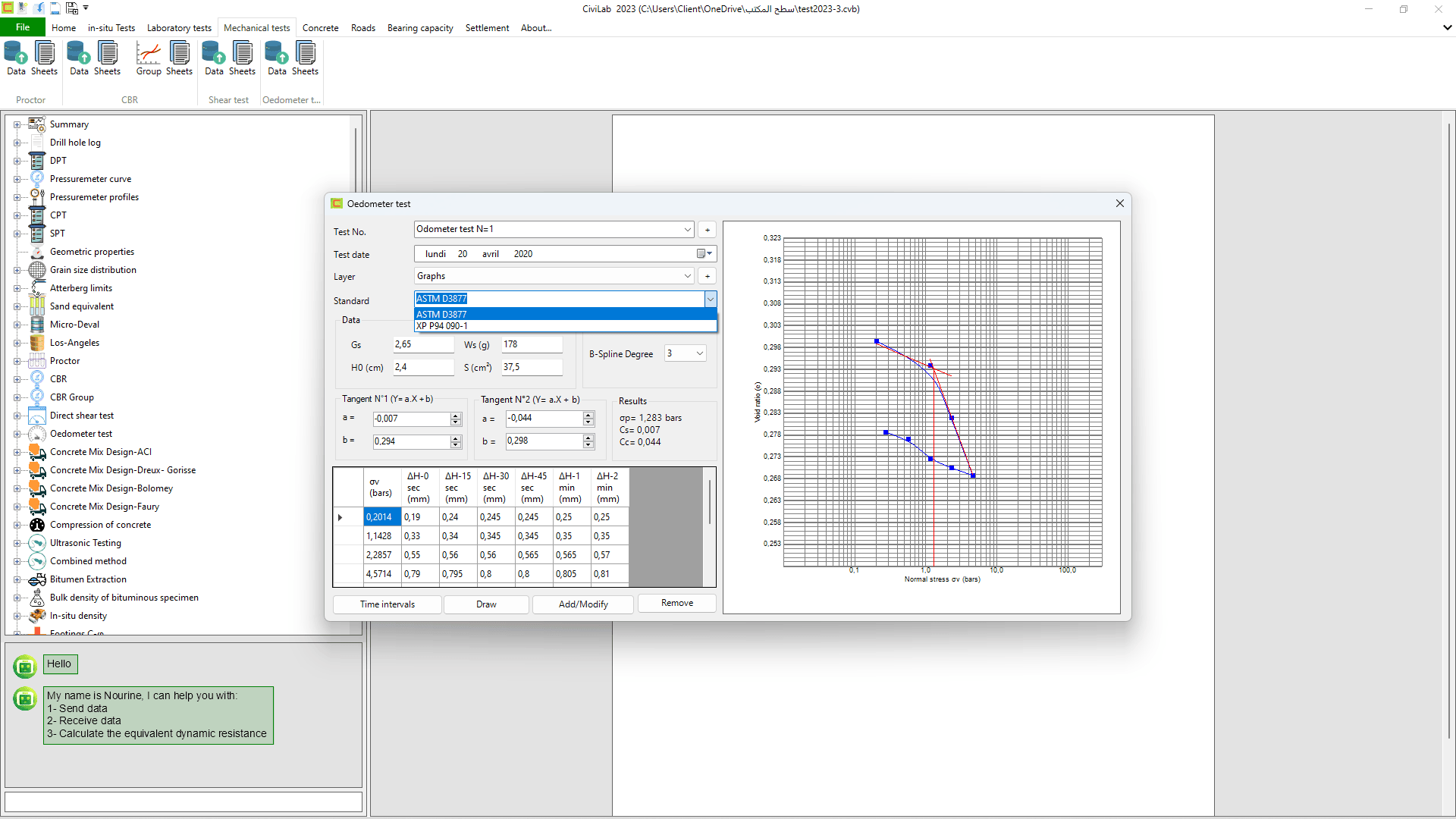

Screenshots



With CiviLab, pay the lowest subscription price for soil laboratory software and take advantage of a wide range of tests and free updates
Discover CviLab

What is CiviLab ?



CiviLab is a civil engineering laboratory software (Soil and concrete). Our laboratory software allows you to perform the tests with your preferred language and provides you a multilingual reports. Designed by civil engineers to meet your expectations. Easiness of usage, allowing members of your laboratory to master CiviLab in record time.

Our soil and concrete laboratory software supports the following languages

  • English;
  • French.

CiviLab supports the following unit systems:

  • Metric;
  • Imperial.

CiviLab manages the following tests and calculations:


  1. Geometric properties (density, Moisture content, Void ratio ...etc.);
  2. Grain size distribution test;
  3. Atterberg limits test;
  4. Sand equivalent test;
  5. Micro deval abrasion test;
  6. Los angeles abrasion test;
  7. Proctor compaction test;
  8. CBR test;
  9. Direct shear test;
  10. Oedometer test;
  11. Drill hole log;
  12. Heavy dynamic penetrometer test;
  13. Cone penetration test;
  14. Menard pressuremeter test;
  15. Concrete mix design- ACI method;
  16. Concrete mix design- Dreux- Gorisse method;
  17. Concrete mix design- Bolomey method;
  18. Concrete mix design- Faury method;
  19. Compression test on concrete;
  20. Ultrasonic testing;
  21. Bitumen Extraction test;
  22. Bulk relative density of bituminous specimen;
  23. In-Situ Density Measurements.
  24. Shallow foundations:
    • Evaluation of bearing capacity from: laboratory tests, dynamic penetrometer test, cone penetration test and Menard pressuremeter test;
    • Settlement evaluation from the pressuremeter test.
