Bearing capacity: laboratory tests

Footings are the bases laid on the soil on top of which a structure is erected. Thus, it is the foundation on which a building or any such structure stands upon. They are made of concrete having reinforcements inside them and are poured into an excavated ditch or conduit. Before the foundation is built, a test is done to assess the strength of the soil bearing capacity to ascertain the type of foundation to be built.

Ultimate bearing capacity is the maximum pressure a foundation can exert on the soil before a large scale failure occurs. Such failures can be catastrophic with collapse of the structure

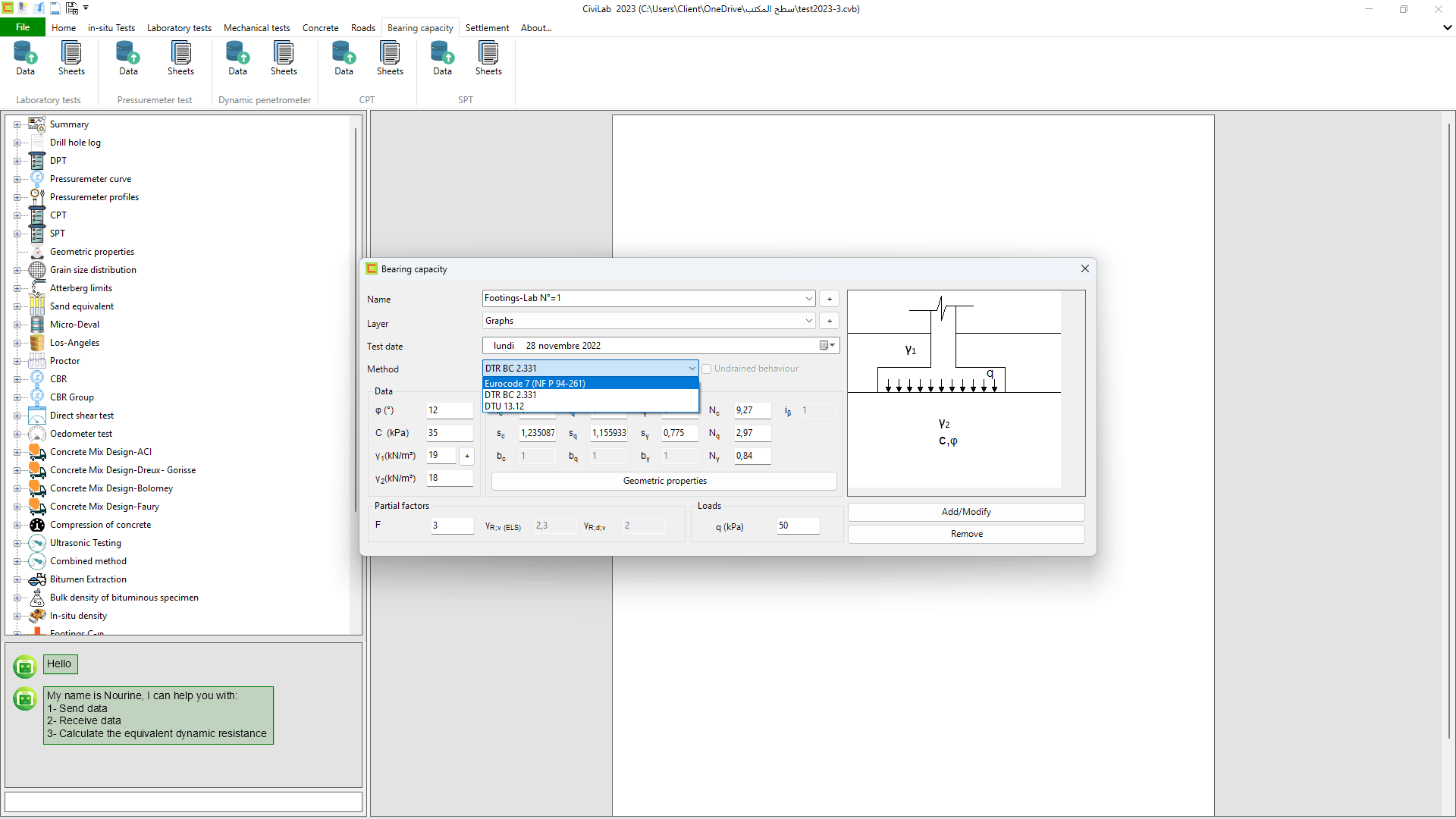

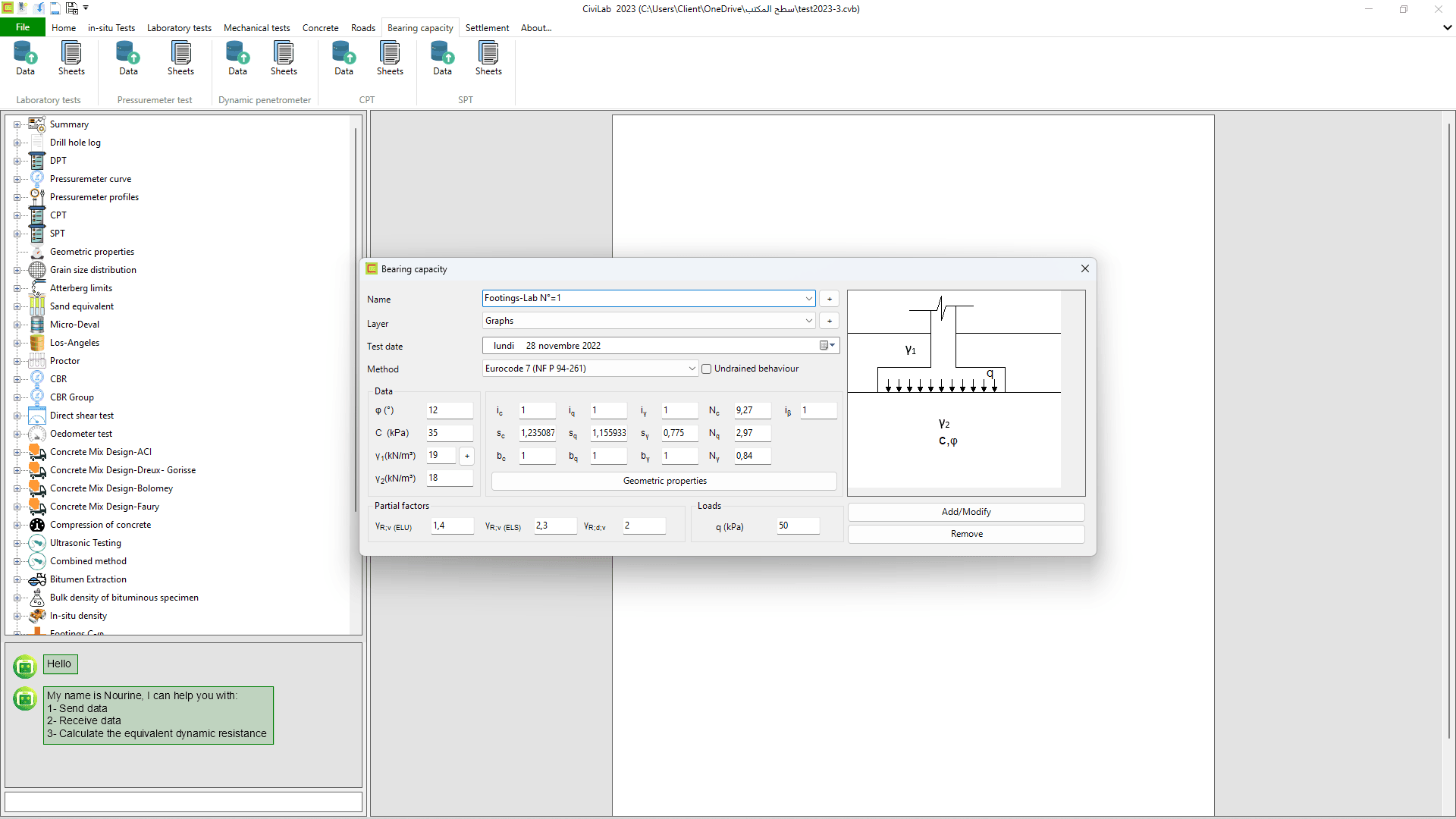

CiviLab calculates the bearing capacity of an isolated footings from results of laboratory tests according to

  • NF P 94 261 (Eurocode 7);
  • DTR BC 2.331;
  • DTU 13.12.

According to standard NF P 94 261, CiviLab took into consideration both cases, namely:

  • Undrained conditions;
  • Drained conditions.

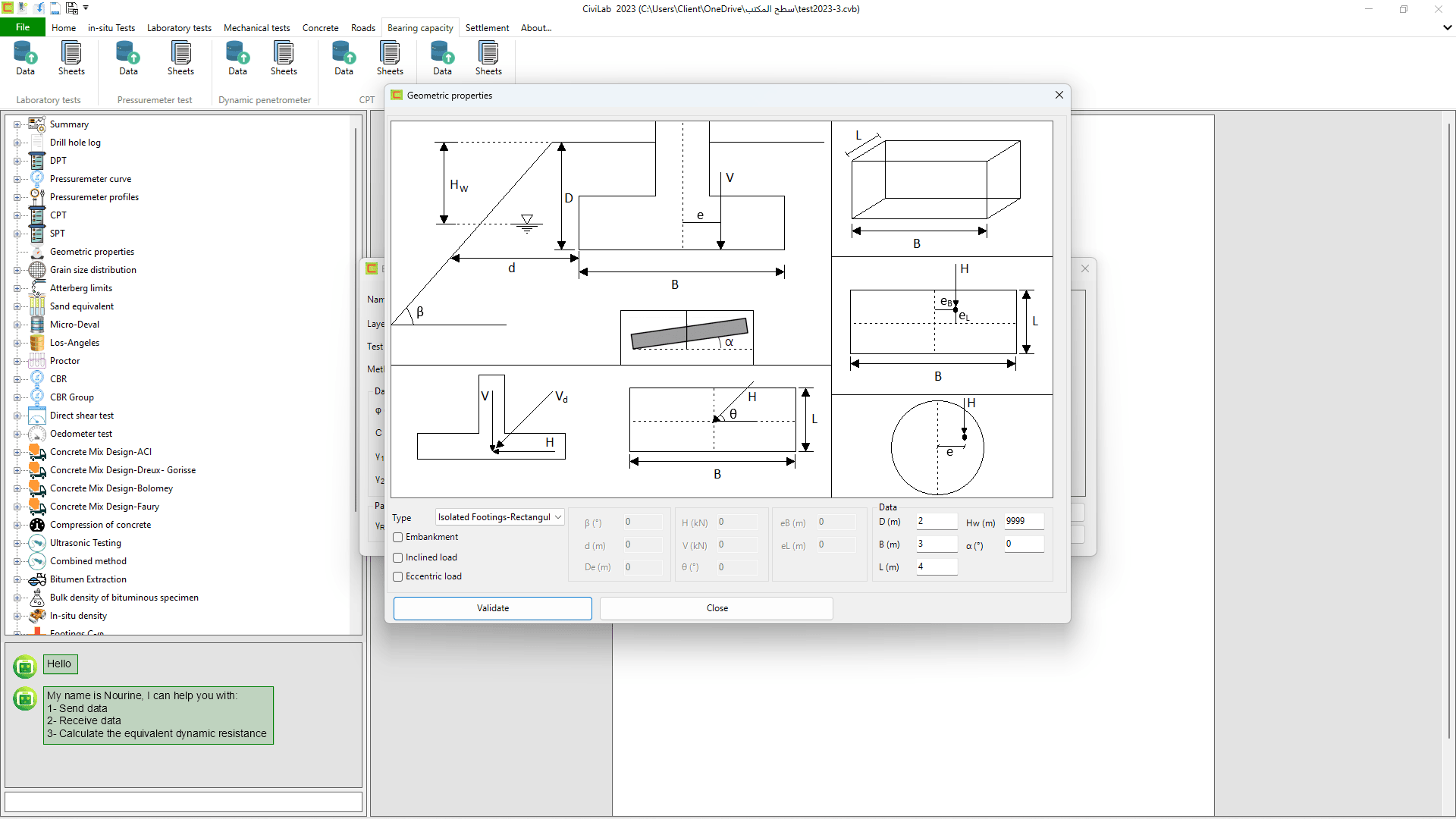

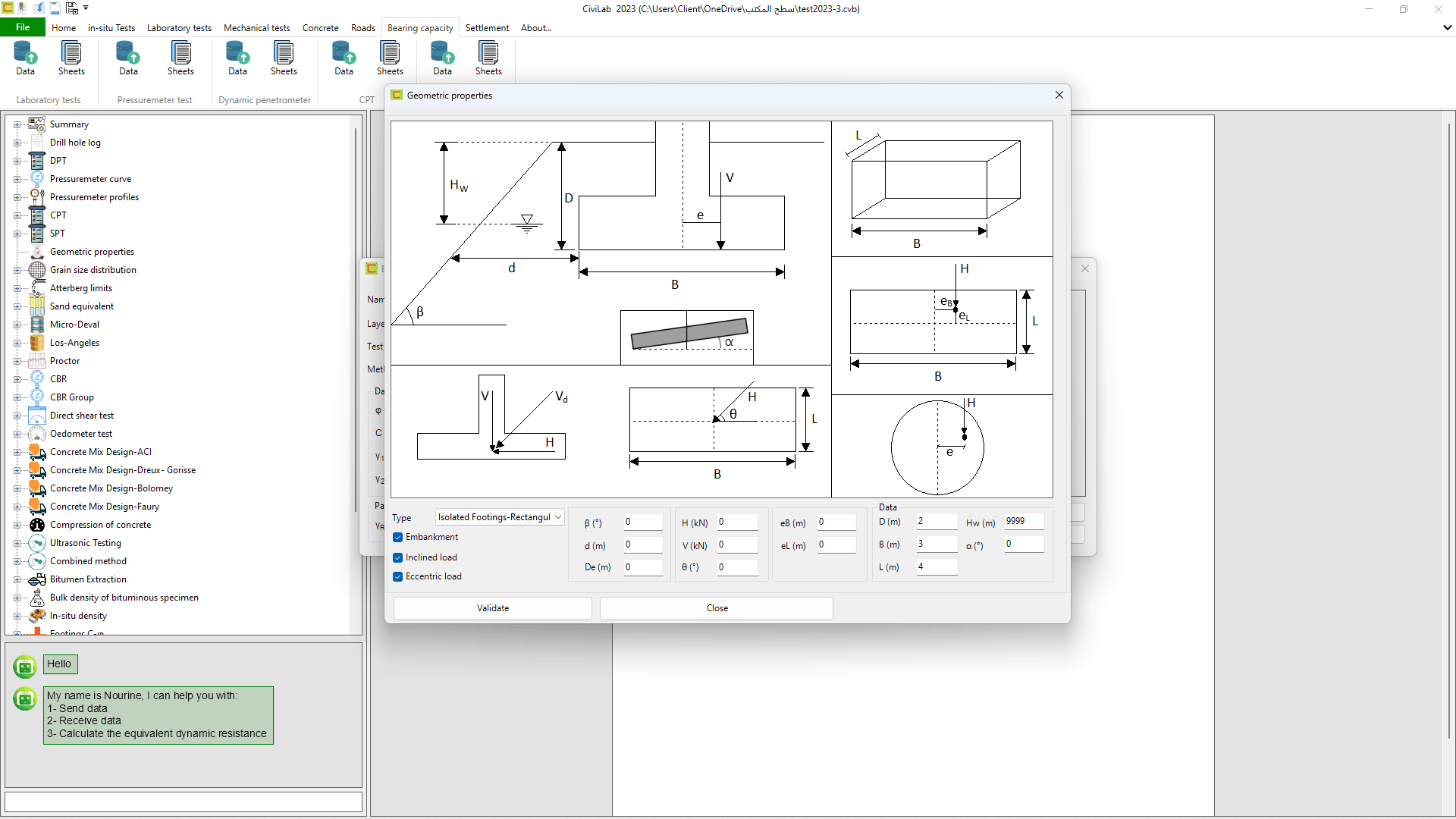

Based on the properties of the soil, the footing shape and the standard chosen, CiviLab determines the following factors:

  • Bearing capacity factors Nc, Nq et Nγ;
  • Base inclination correction factors bc, bq et bγ;
  • Shape correction factor sc, sq et sγ;
  • Loads inclination correction factors ic, iq et iγ.

CiviLab allows you to:

  • Calculate the bearing capacity of a shallow footing according to several standards;

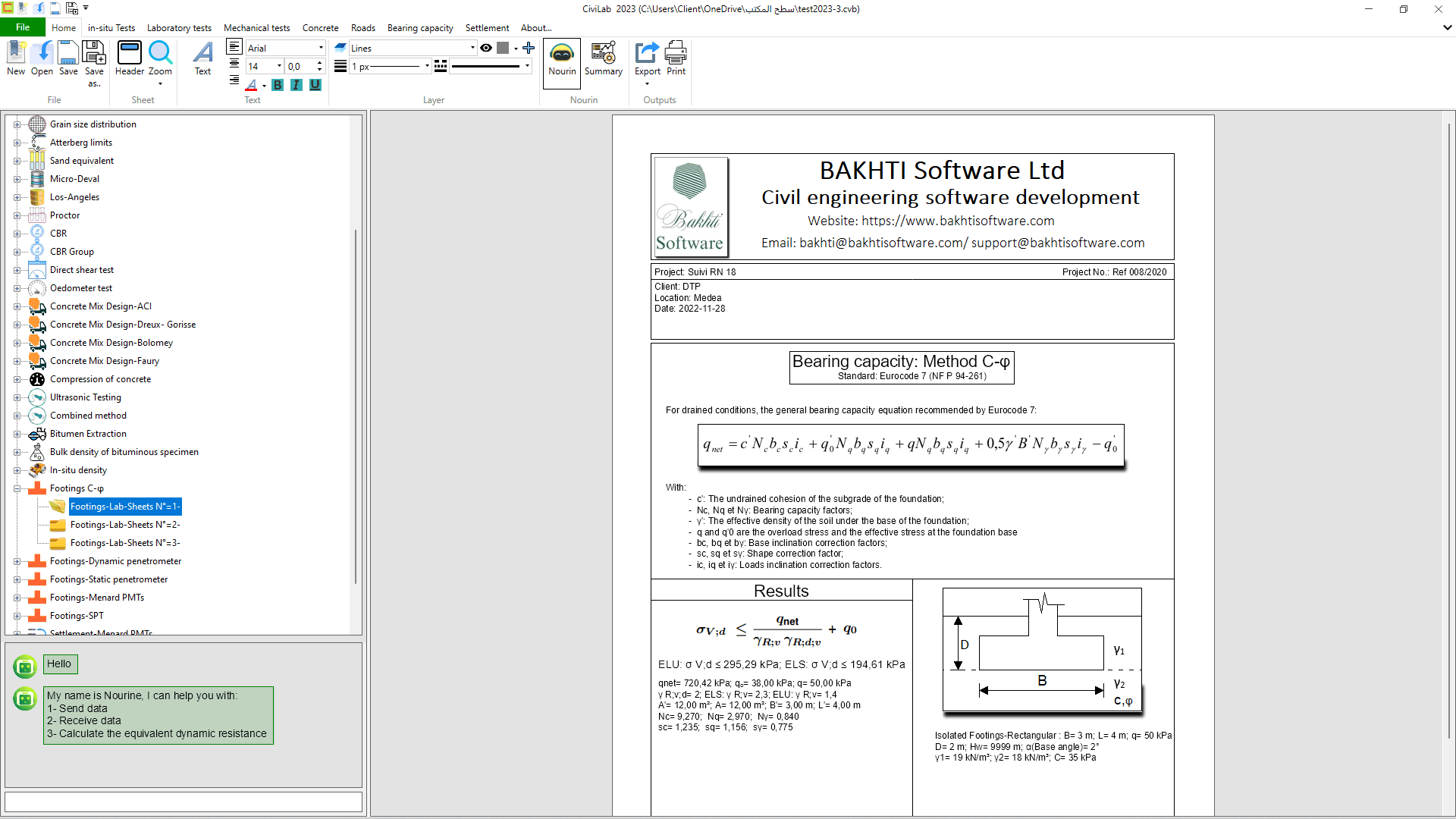

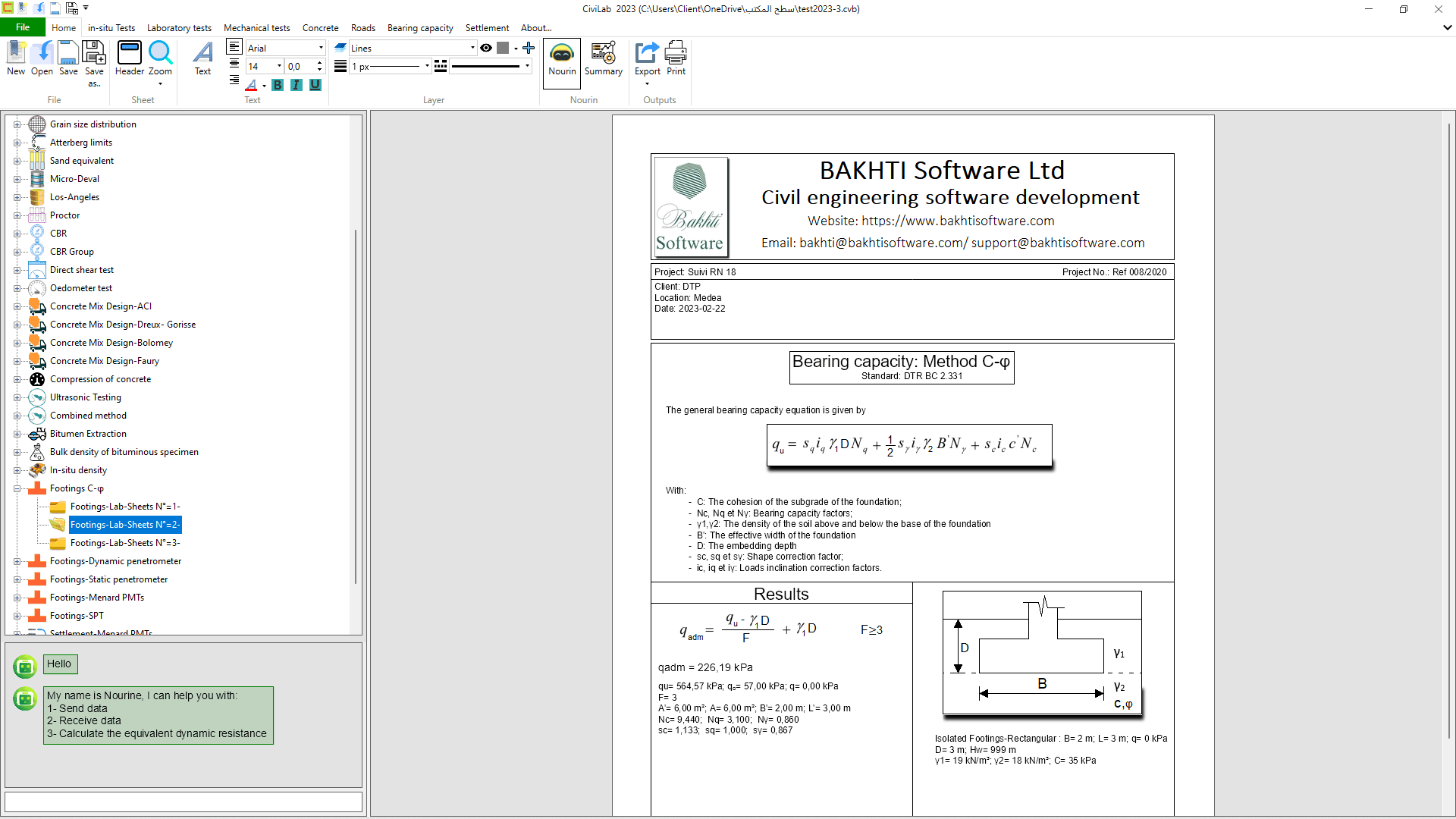

  • Provide high quality reports;
  • Archive reports correctly.

With "CiviLab", you can easily calculate the bearing capacity of a shallow footing. CiviLab also provides high quality reports and archive them properly

User manual: Bearing capacity from results of laboratory tests


With CiviLab, pay the lowest subscription price for soil laboratory software and take advantage of a wide range of tests and free updates
Discover CviLab

What is CiviLab ?

CiviLab is a civil engineering laboratory software (Soil and concrete). Our laboratory software allows you to perform the tests with your preferred language and provides you a multilingual reports. Designed by civil engineers to meet your expectations. Easiness of usage, allowing members of your laboratory to master CiviLab in record time.

Our soil and concrete laboratory software supports the following languages

  • English;
  • French.

CiviLab supports the following unit systems:

  • Metric;
  • Imperial.

CiviLab manages the following tests and calculations:

  1. Geometric properties (density, Moisture content, Void ratio ...etc.);
  2. Grain size distribution test;
  3. Atterberg limits test;
  4. Sand equivalent test;
  5. Micro deval abrasion test;
  6. Los angeles abrasion test;
  7. Proctor compaction test;
  8. CBR test;
  9. Direct shear test;
  10. Oedometer test;
  11. Drill hole log;
  12. Heavy dynamic penetrometer test;
  13. Cone penetration test;
  14. Menard pressuremeter test;
  15. Concrete mix design- ACI method;
  16. Concrete mix design- Dreux- Gorisse method;
  17. Concrete mix design- Bolomey method;
  18. Concrete mix design- Faury method;
  19. Compression test on concrete;
  20. Ultrasonic testing;
  21. Bitumen Extraction test;
  22. Bulk relative density of bituminous specimen;
  23. In-Situ Density Measurements.
  24. Shallow foundations:
    • Evaluation of bearing capacity from: laboratory tests, dynamic penetrometer test, cone penetration test and Menard pressuremeter test;
    • Settlement evaluation from the pressuremeter test.
